Add a ESNAD Express account
This guide walks through setting up a ESNAD Express account in the Carriyo Dashboard. It covers the required roles, the credentials to collect, and every field ESNAD Express expects.
At a glance
Before you start
- A ESNAD Express account in good standing, plus its API credentials. The required fields are listed in All ESNAD Express settings below.
- Decide the account country and the default service and label format this account uses.
Open the carrier accounts page
In the Carriyo Dashboard, open Settings in the left sidebar. Under Carrier Management, choose Carrier Accounts, then click the + add icon to start a new account.

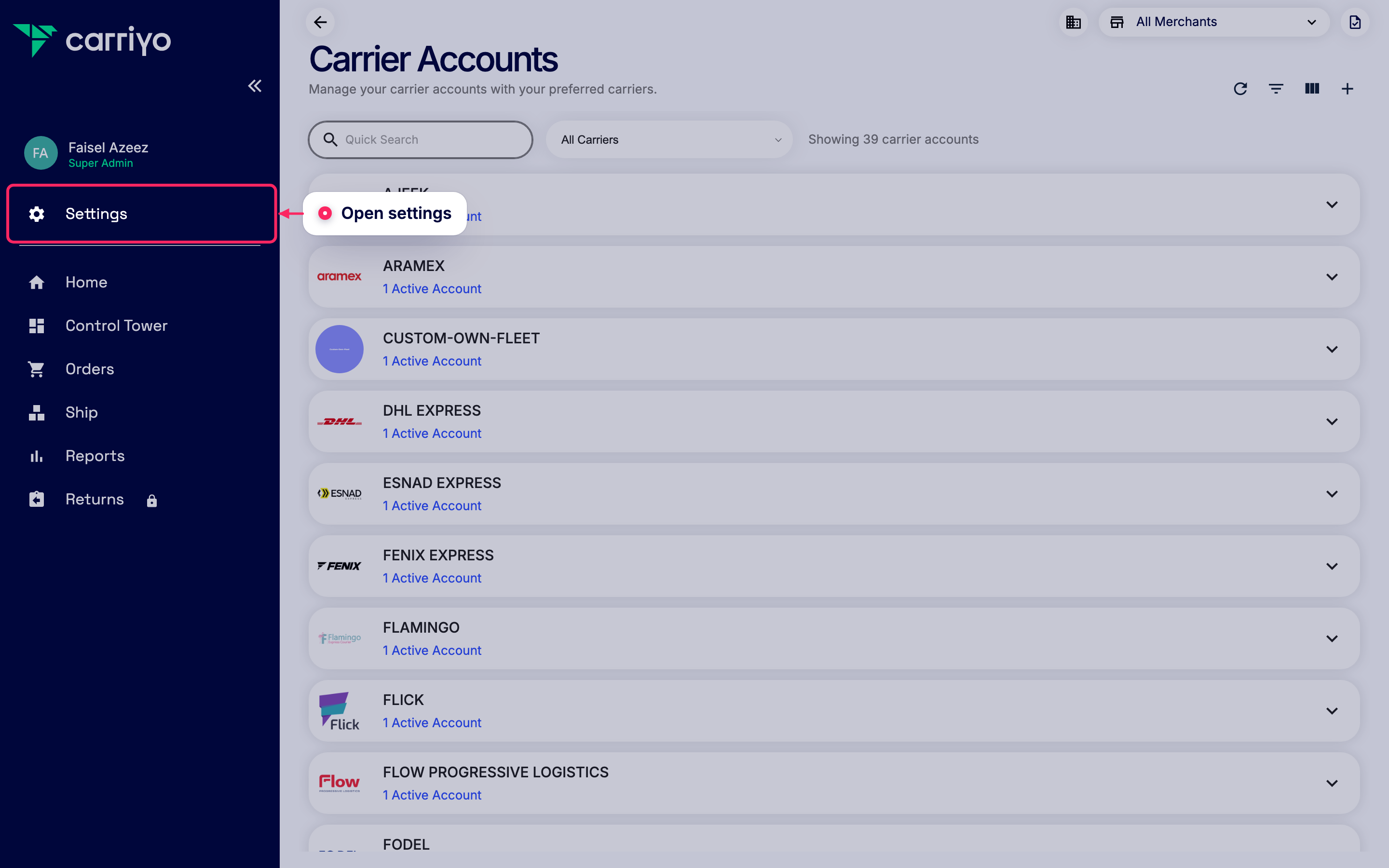

Open settings
Go to Carrier Accounts

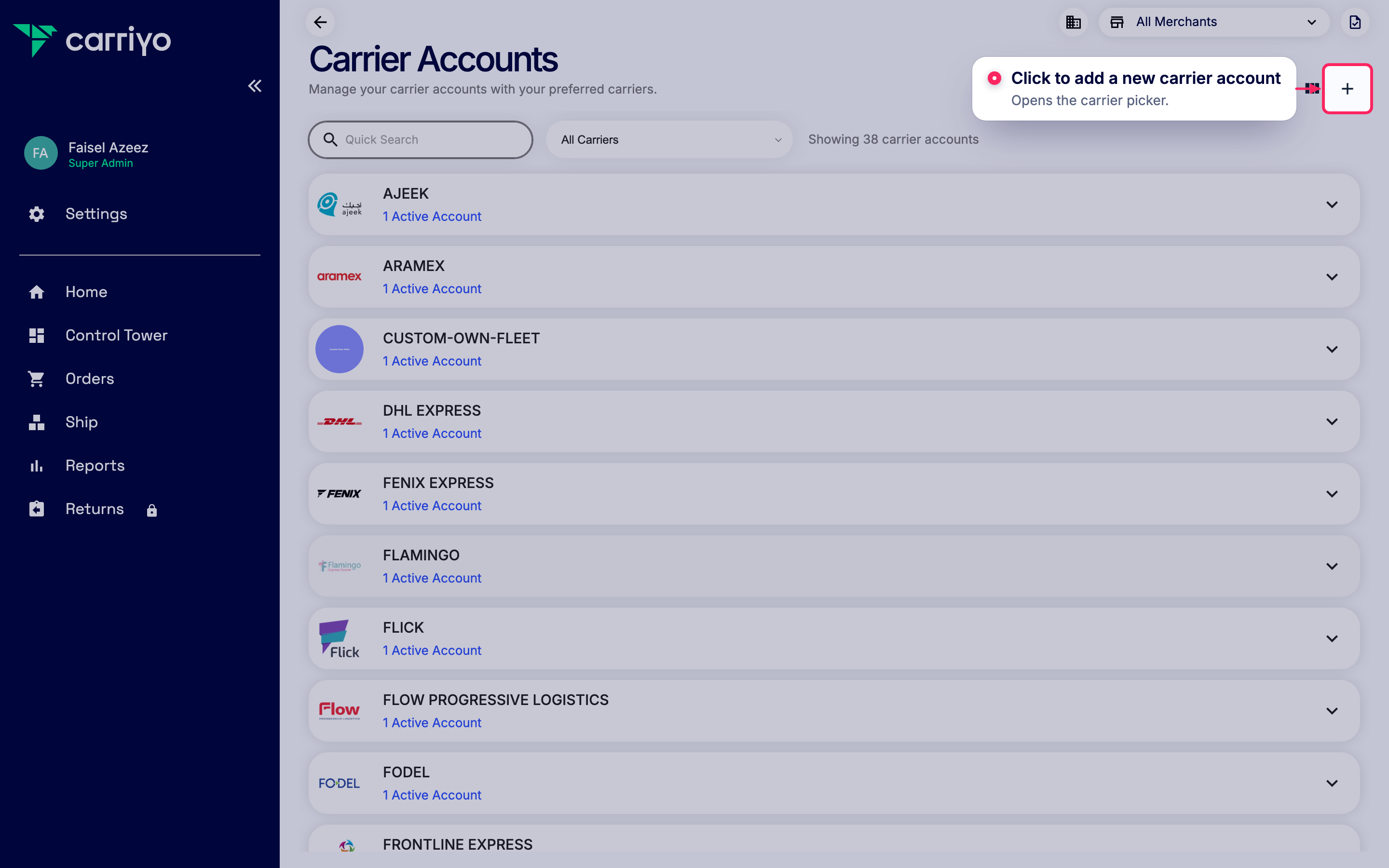

Add a new carrier account
Pick ESNAD Express
In the carrier picker, search for ESNAD Express and click Select. Carriyo creates a ESNAD Express account and opens the credential step.

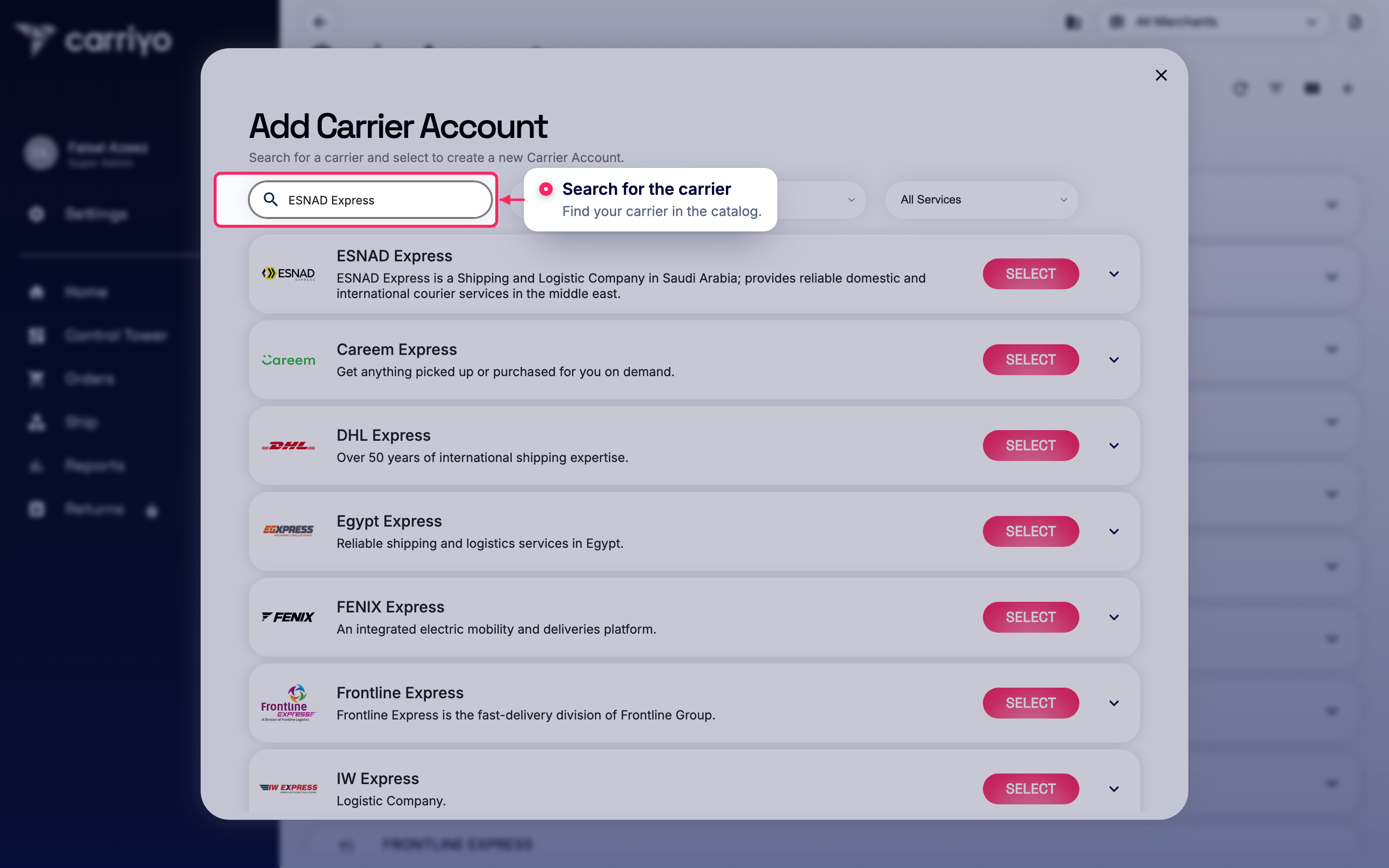

Search for the carrier
Enter the basics
The first wizard page collects two fields:
- Account name
- A label that's meaningful to your team (e.g.
ESNAD Express Saudi Arabia). Keep it short and unique. - Account country
- The country this account ships from. Determines the routes and services available.

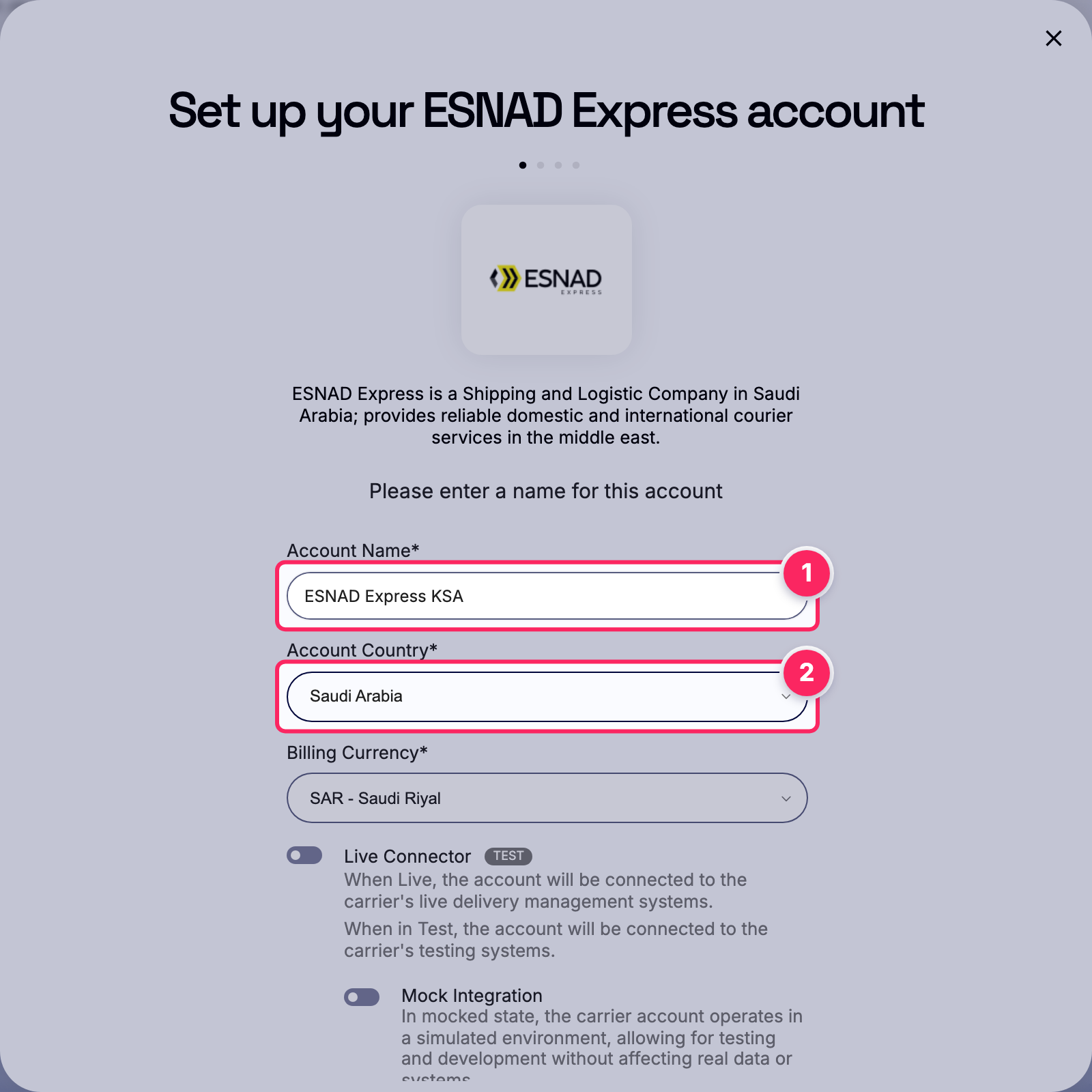

Fill in the account name and country.
- 1Account Name
- 2Account Country
Enter your ESNAD Express account details
Enter the required ESNAD Express account details, then click Next. Every field is documented in All ESNAD Express settings below, with examples and accepted values.

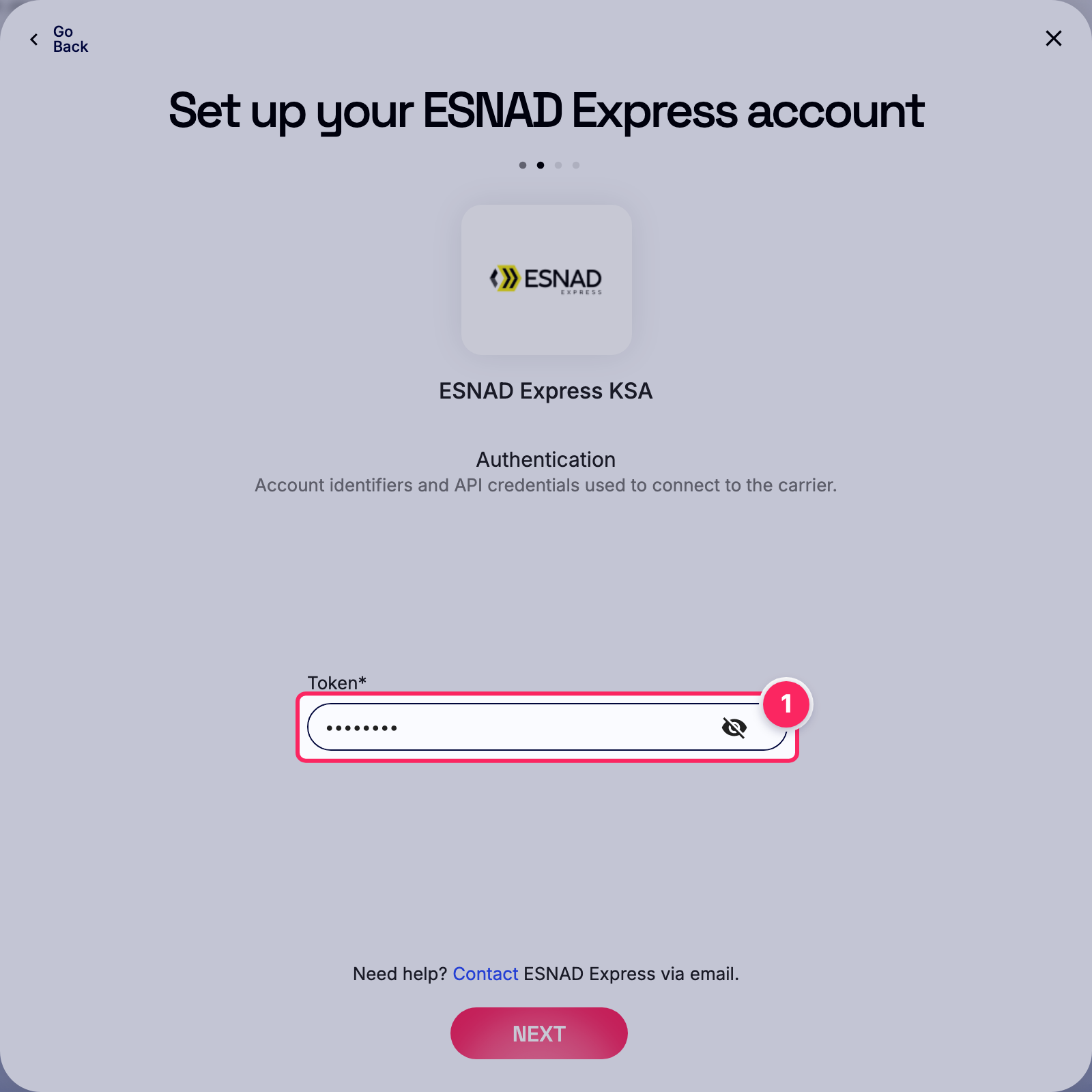

Enter token.
- 1Token

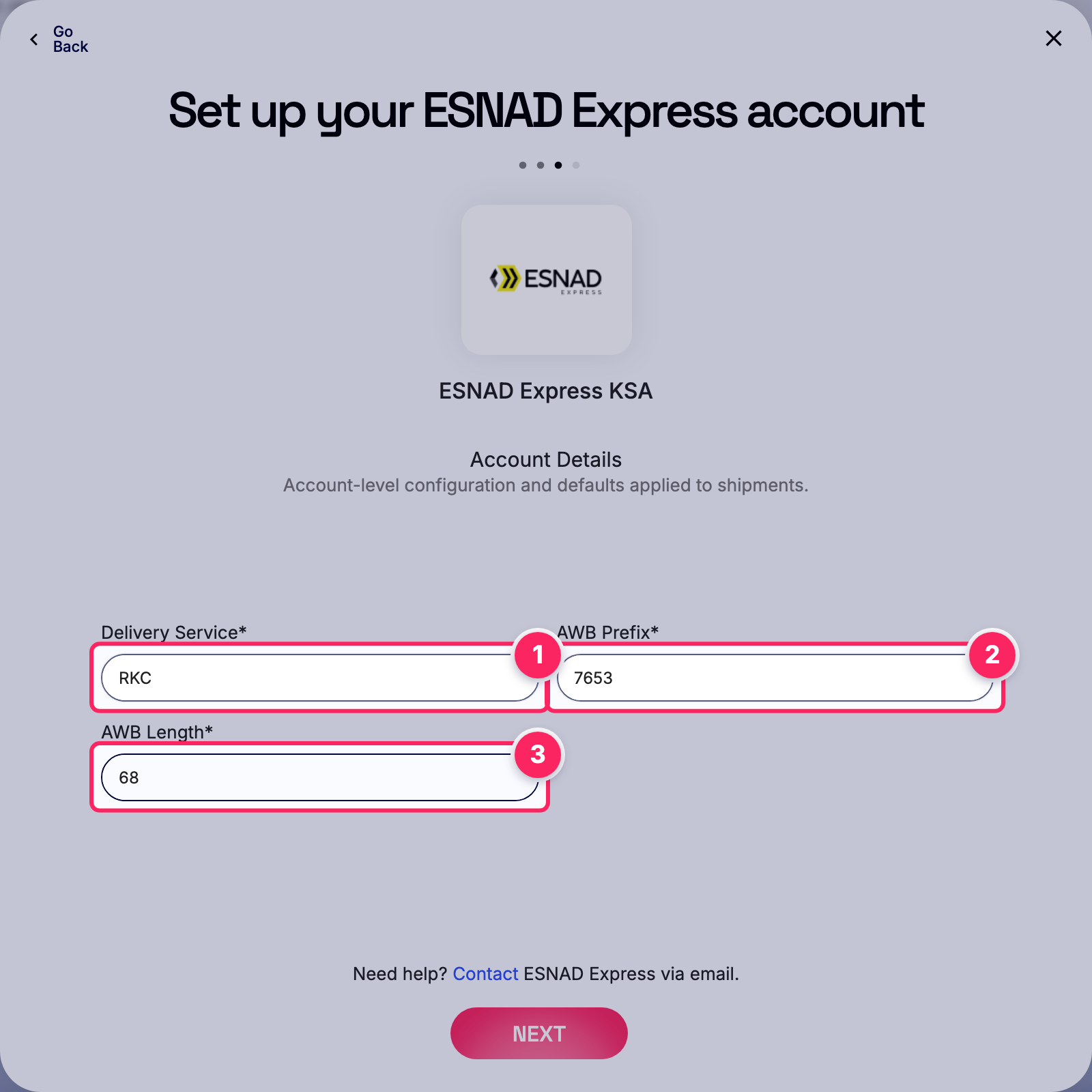

Fill in the ESNAD Express account details.
- 1Delivery Service
- 2AWB Prefix
- 3AWB Length
Configure the account
The new account opens on its detail page. General settings work the same way for every carrier: the Active toggle, default label and service, and currency. See Add a carrier account for the full reference to these shared settings — default label, merchant access, going live, and common mistakes.

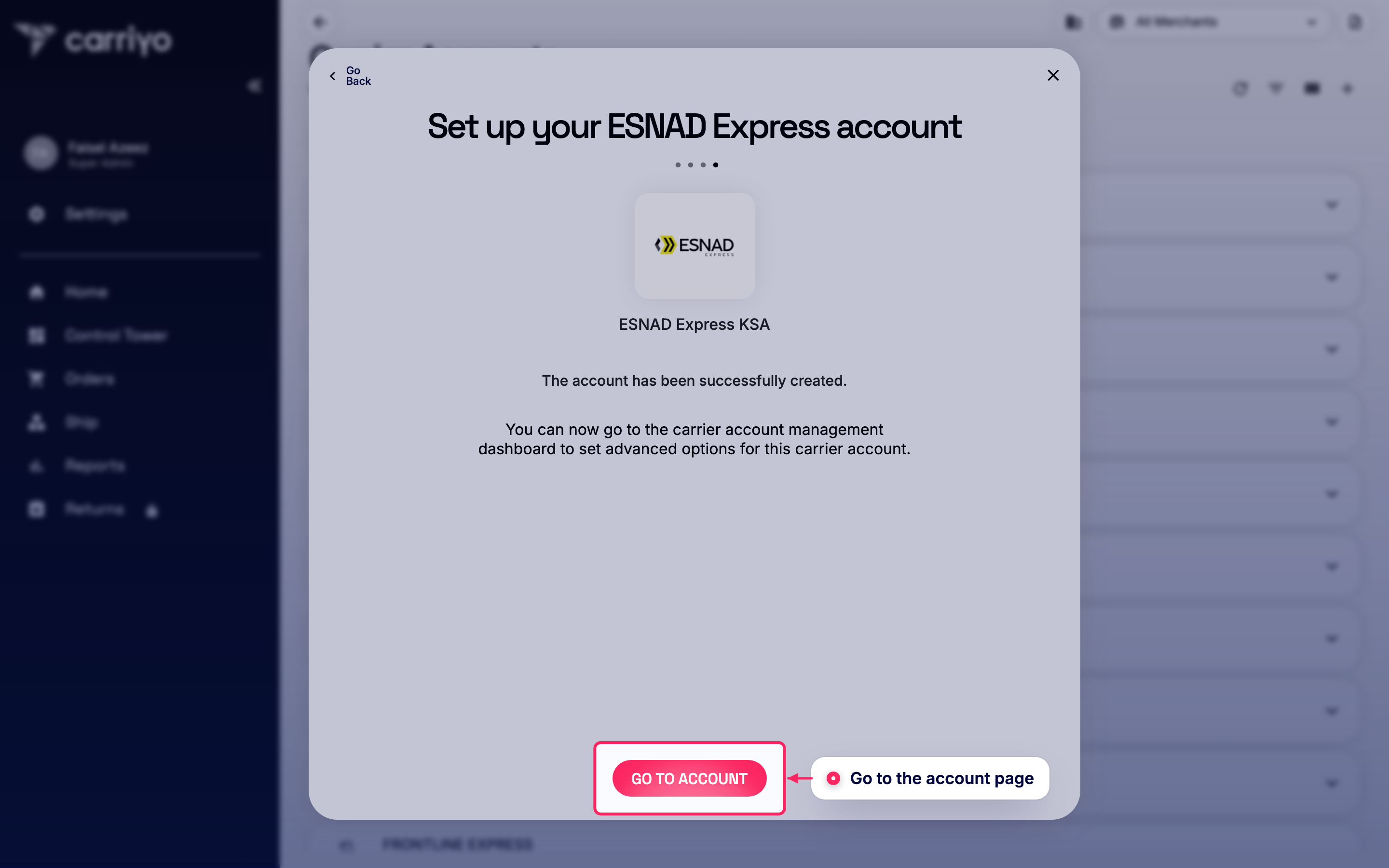

Go to the account page
View the account details

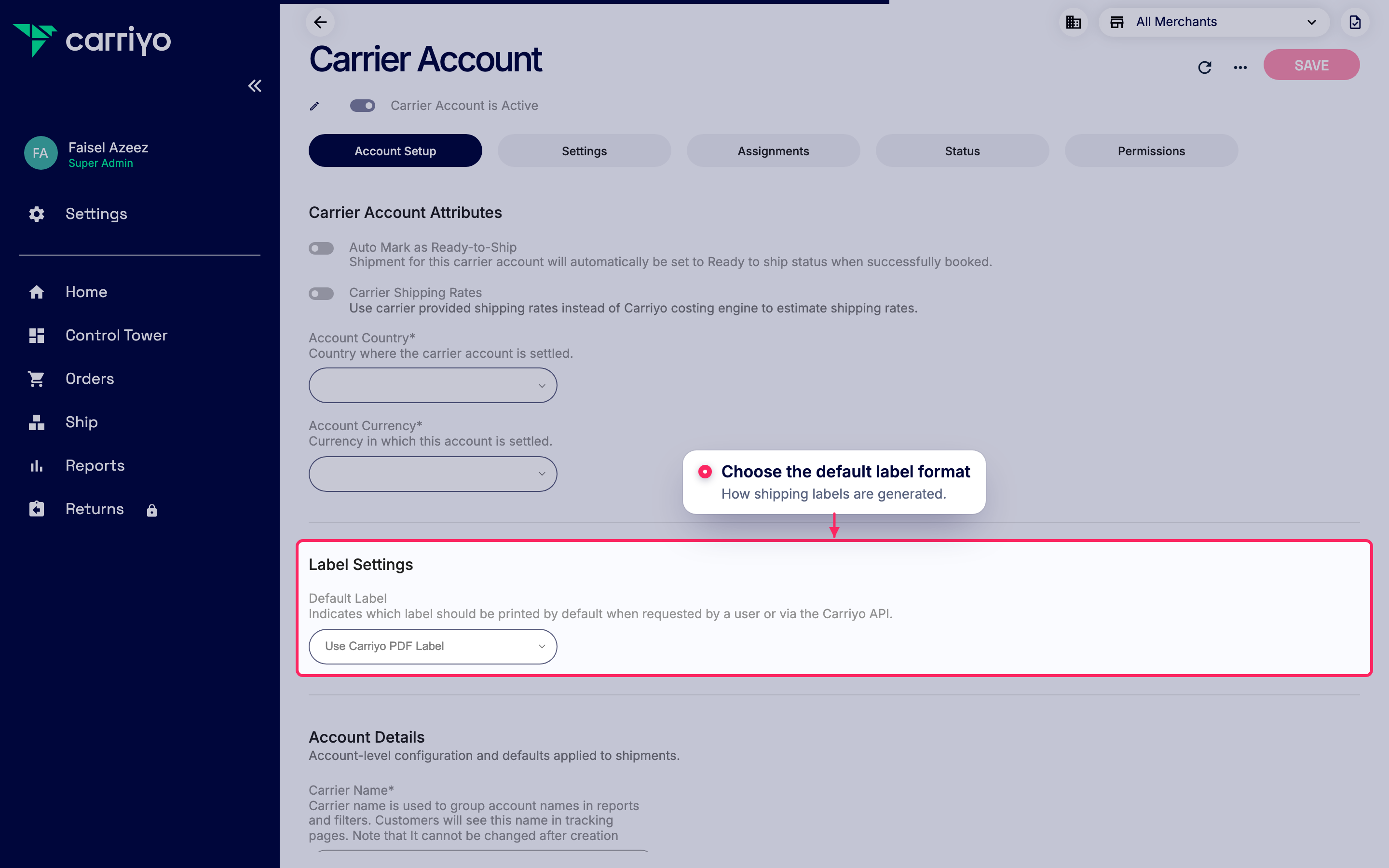

Set the default label format
Merchant access
On multi-merchant tenants, restrict the account to specific merchants via the Permissions tab, then Save.
Add merchants to this carrier account
All ESNAD Express settings
Every field ESNAD Express exposes in the carrier account, grouped by section. Carriyo stores secrets encrypted and never shows them after saving.
Authentication
1 fieldAccount identifiers and API credentials used to connect to the carrier.
| Field | Type | What to enter |
|---|---|---|
| TokenRequired | Secret | Esnad API access token used to authenticate booking requests. Example: enqjn678 |
Account Details
3 fieldsAccount-level configuration and defaults applied to shipments.
| Field | Type | What to enter |
|---|---|---|
| Delivery ServiceRequired | Text | Esnad delivery service code applied to each booking. Confirm the value to use with Esnad. Example: RKC |
| AWB PrefixRequired | Text | Fixed prefix prepended to each generated air waybill number. Assigned to you by Esnad. Example: 7653 |
| AWB LengthRequired | Text | Total length of the air waybill number; the sequence is zero-padded after the prefix to this length. Example: 68 |
Capability notes
Behavior that follows from ESNAD Express's capabilities. Read these before you go live.
