Add a DAL account
This guide walks through setting up a DAL account in the Carriyo Dashboard. It covers the required roles, the credentials to collect, and every field DAL expects.
At a glance
Before you start
- A DAL account in good standing, plus its API credentials. The required fields are listed in All DAL settings below.
- Decide the account country and the default service and label format this account uses.
Open the carrier accounts page
In the Carriyo Dashboard, open Settings in the left sidebar. Under Carrier Management, choose Carrier Accounts, then click the + add icon to start a new account.

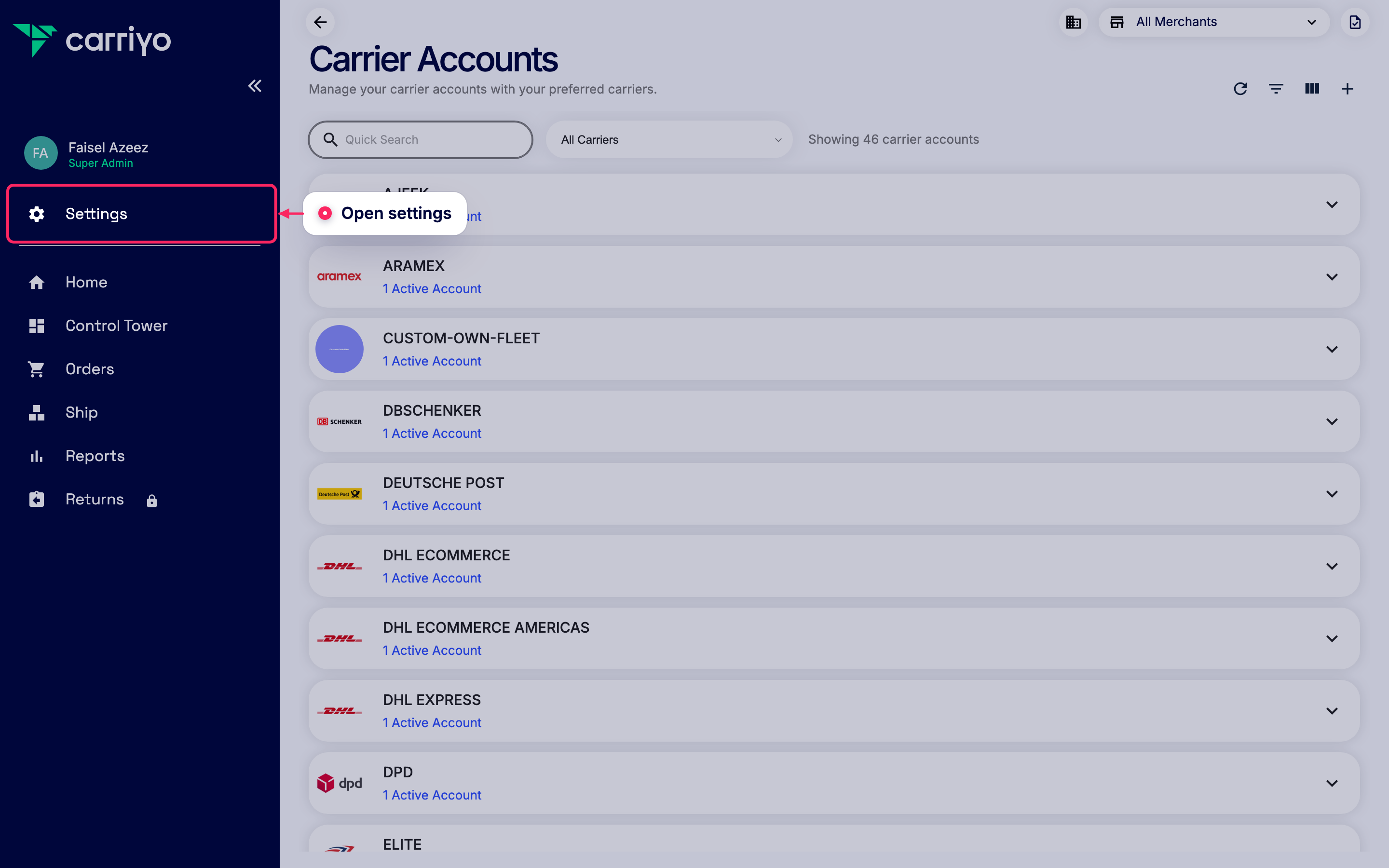

Open settings
Go to Carrier Accounts

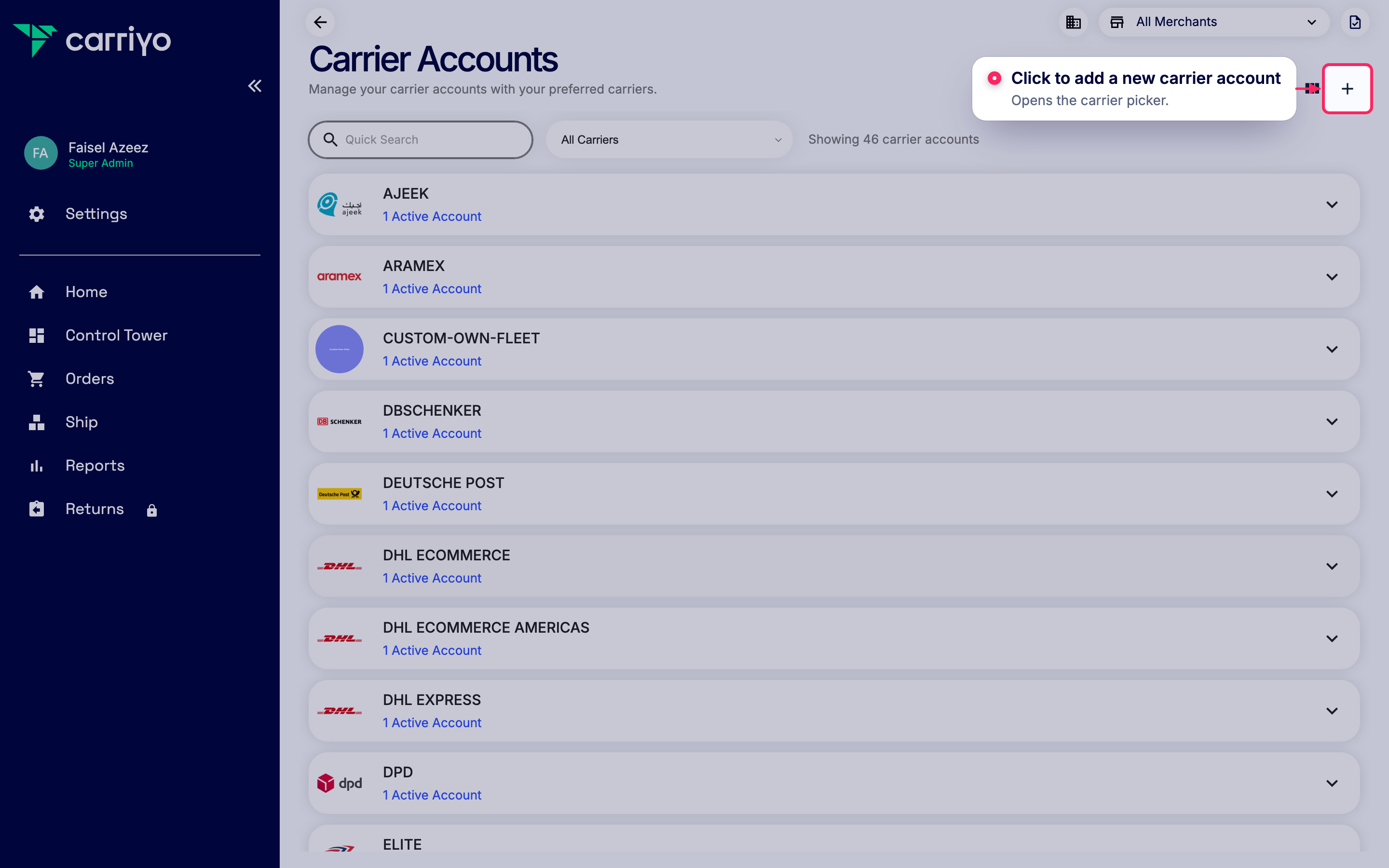

Add a new carrier account
Pick DAL
In the carrier picker, search for DAL and click Select. Carriyo creates a DAL account and opens the credential step.

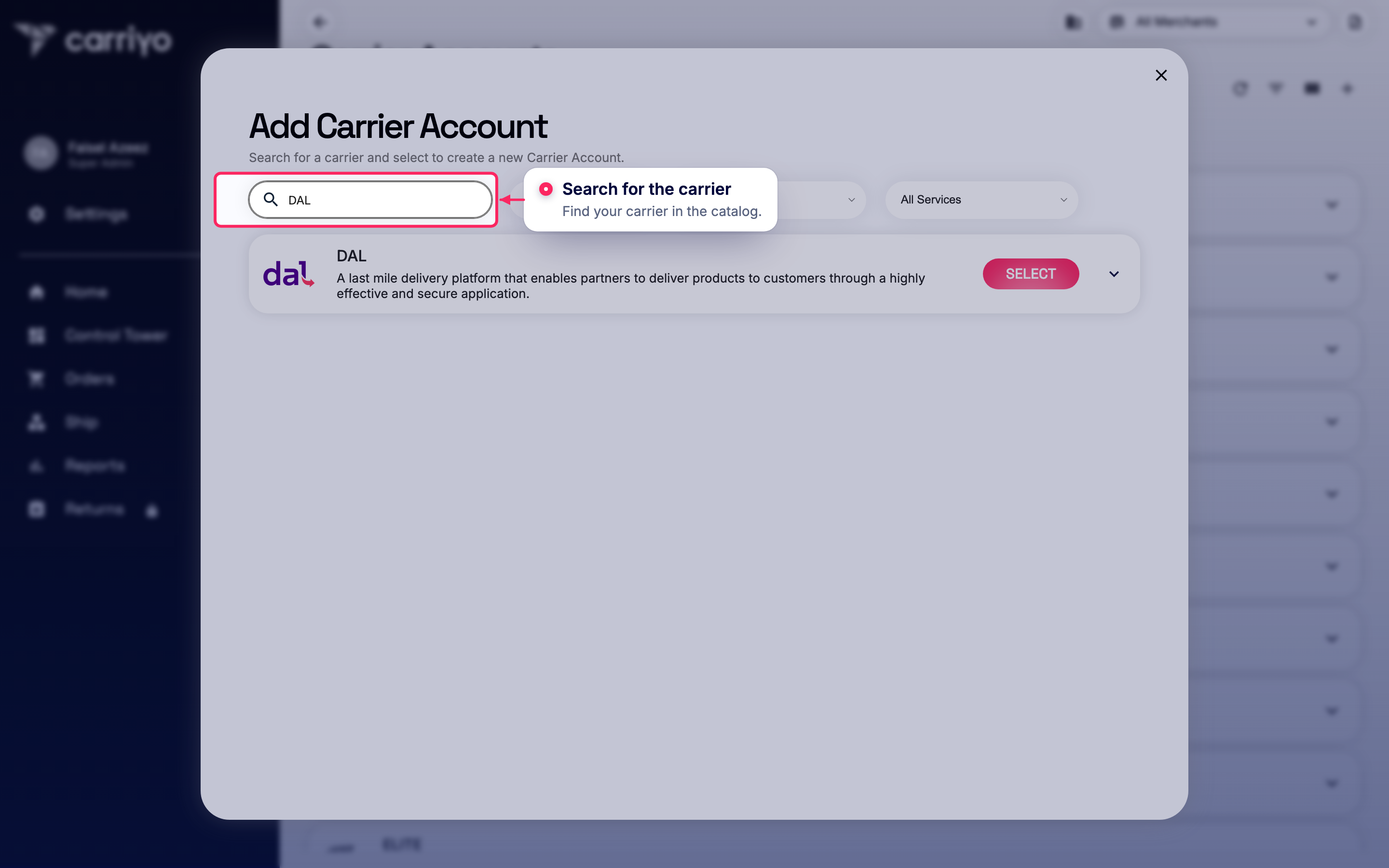

Search for the carrier
Enter the basics
The first wizard page collects two fields:
- Account name
- A label that's meaningful to your team (e.g.
DAL Saudi Arabia). Keep it short and unique. - Account country
- The country this account ships from. Determines the routes and services available.

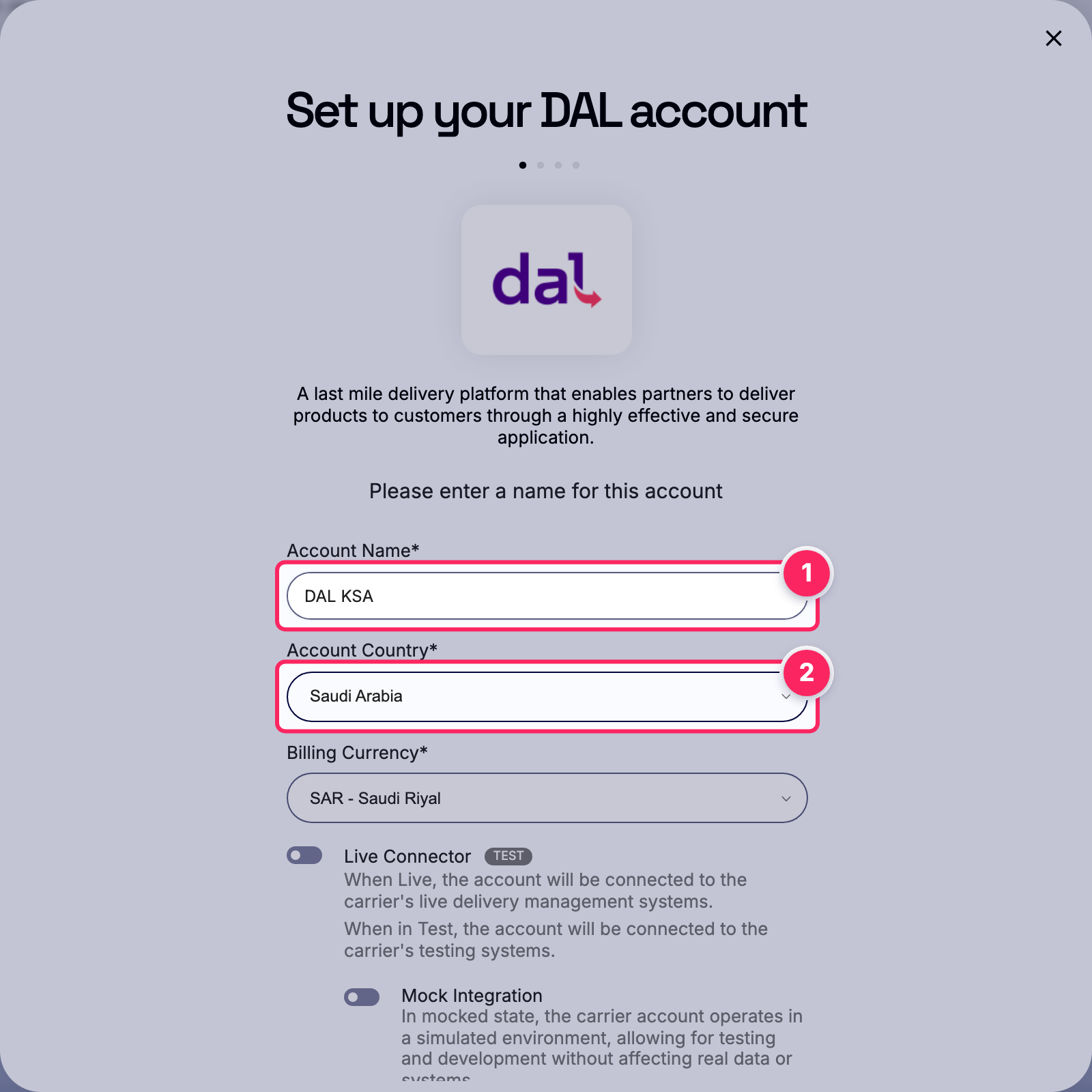

Fill in the account name and country.
- 1Account Name
- 2Account Country
Enter your DAL account details
Enter the required DAL account details, then click Next. Every field is documented in All DAL settings below, with examples and accepted values.

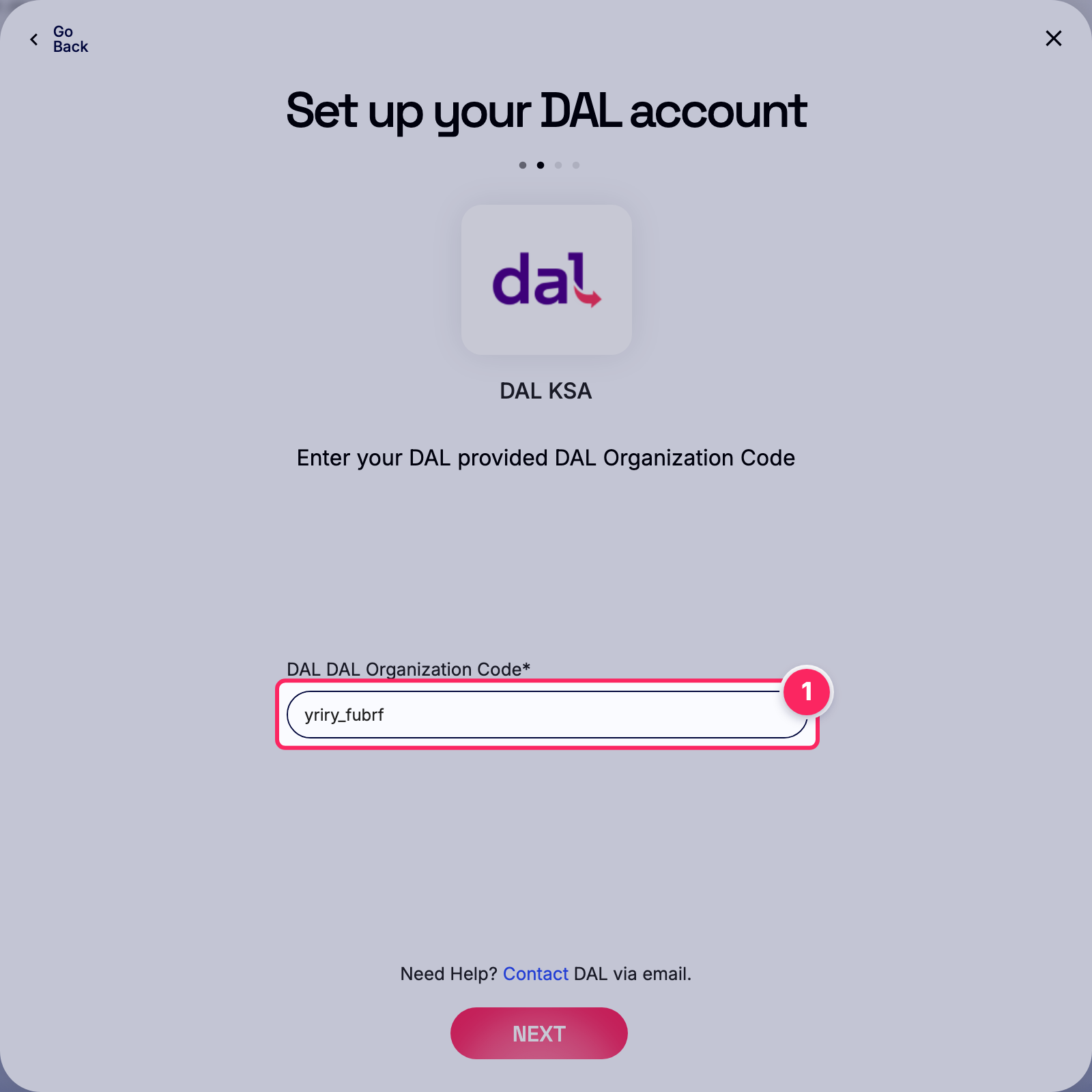

Enter dal dal organization code.
- 1DAL DAL Organization Code

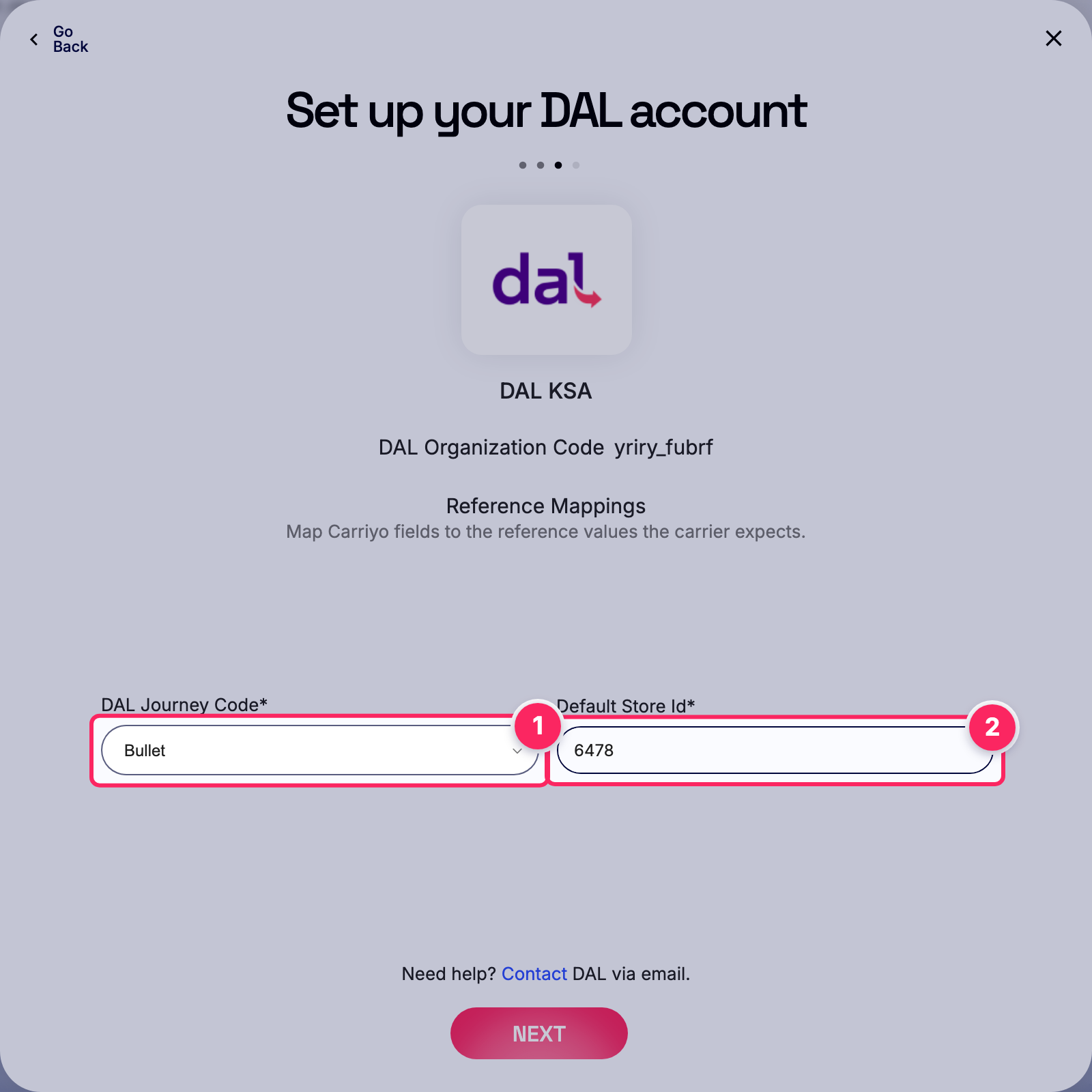

Fill in the DAL account details.
- 1DAL Journey Code
- 2Default Store Id
Configure the account
The new account opens on its detail page. General settings work the same way for every carrier: the Active toggle, default label and service, and currency. See Add a carrier account for the full reference to these shared settings — default label, merchant access, going live, and common mistakes.

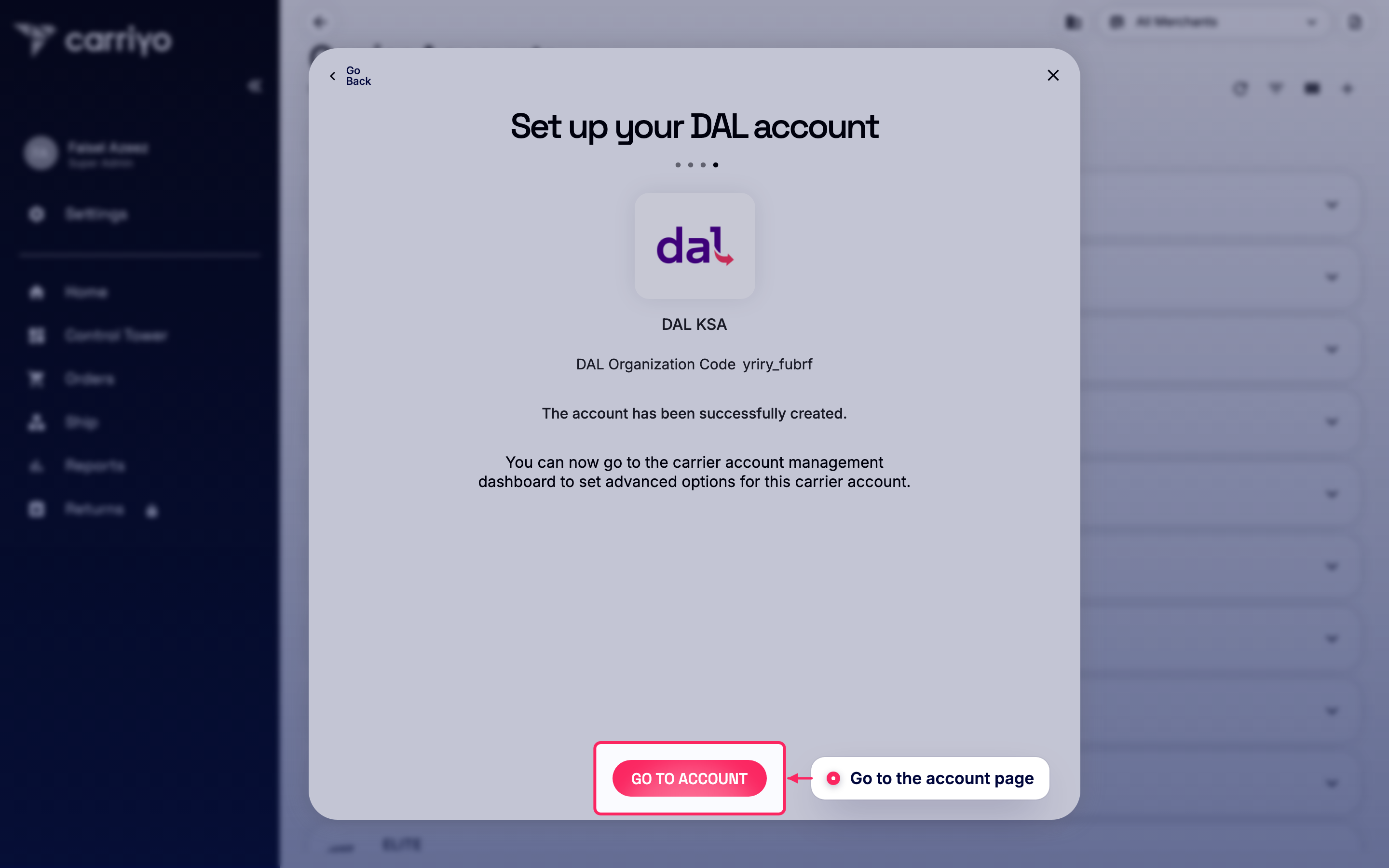

Go to the account page
View the account details

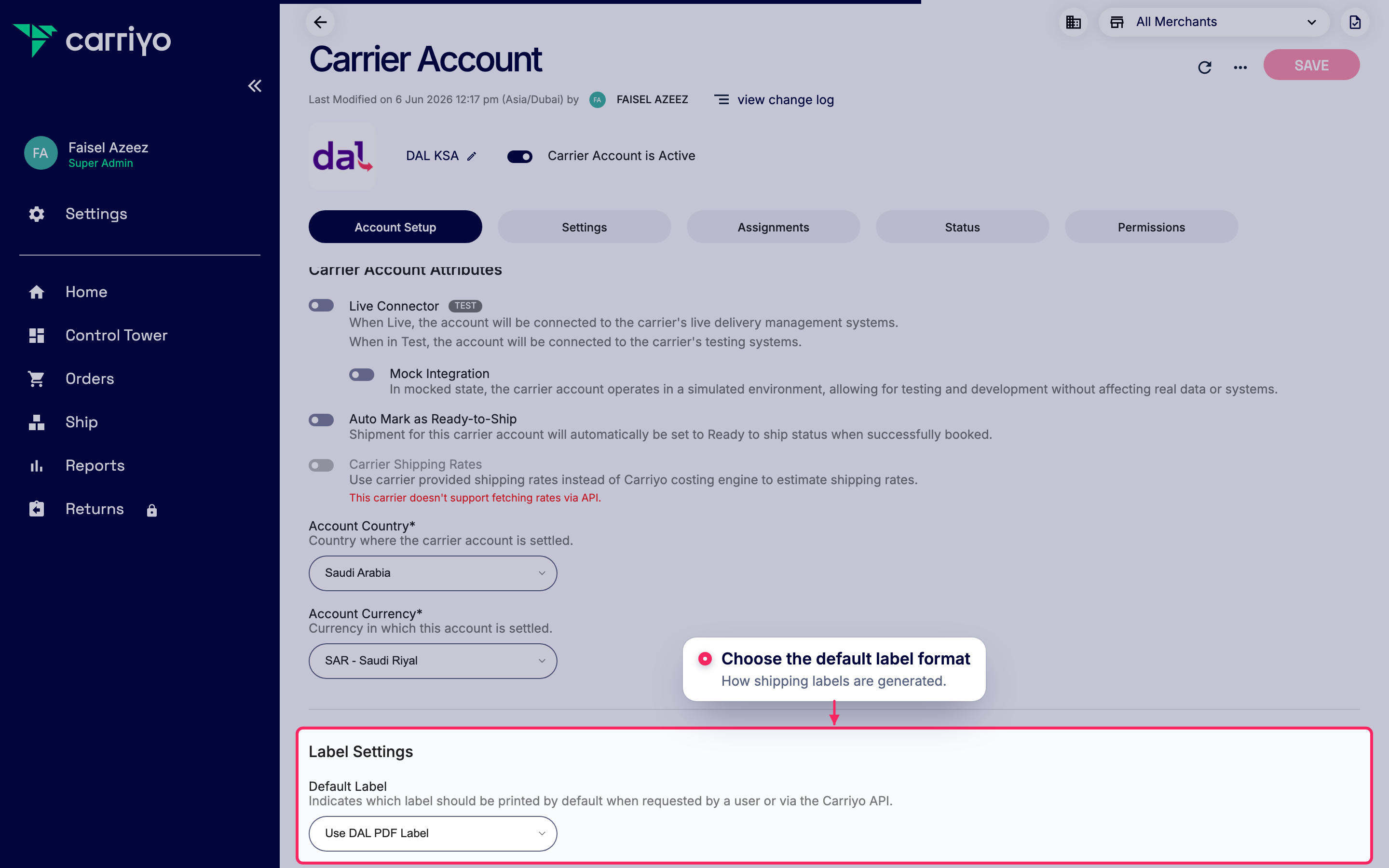

Set the default label format
Set up status callbacks
DAL sends shipment status by webhook, but it has to be registered on DAL's side. Copy the callback details from the account page and share them with your DAL contact. This is a one-time setup.

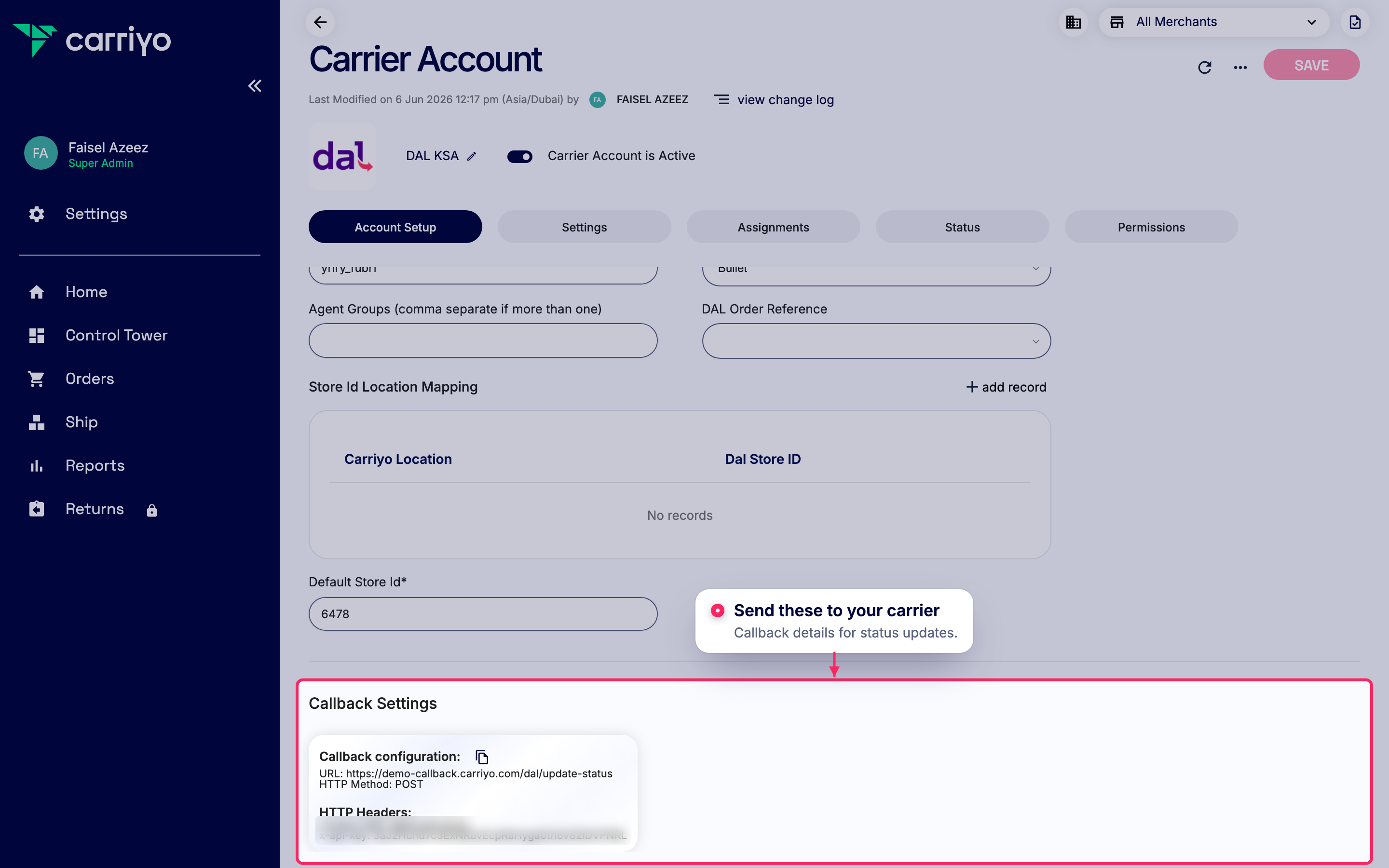

Share callback settings with your carrier
Merchant access
On multi-merchant tenants, restrict the account to specific merchants via the Permissions tab, then Save.
Add merchants to this carrier account
All DAL settings
Every field DAL exposes in the carrier account, grouped by section. Carriyo stores secrets encrypted and never shows them after saving.
Reference Mappings
6 fieldsMap Carriyo fields to the reference values the carrier expects.
| Field | Type | What to enter |
|---|---|---|
| DAL Organization CodeRequired | Text | Your DAL organization code; identifies your account and is the default agent group. Example: yriry_fubrf |
| DAL Journey CodeRequired | Select | Journey applied to each booking. If empty, forward shipments use Delivery and reverse shipments use Reverse. Example: BulletDeliveryBulletSame DayReverse |
| Agent Groups (comma separate if more than one)Optional | Text | DAL agent group codes handling your shipments, comma-separated. If blank, the Organization Code is used. |
| DAL Order ReferenceOptional | Select | Which Carriyo reference is sent to DAL as the order reference. Defaults to Shipment Reference. Example: Order Reference Order ReferenceShipment Reference |
| Store Id Location MappingOptional | Text | Map each Carriyo pickup location to its DAL store ID. Falls back to the Default Store Id when none matches. Example: {"NPPBHAG_o718o537-r3o9-9o63-4s5… |
| Default Store IdRequired | Text | DAL store ID used when a pickup location is not in the store mapping above. Example: 6478 |
Capability notes
Behavior that follows from DAL's capabilities. Read these before you go live.
shipped, in_transit, delivered…) arrive by webhook, but DAL has to register it on their side. Share the callback details from the account page with your DAL contact (see step 5) — a one-time setup.
